Visual Feature Discovery in Colonial Korean Print using MIL

DHBenelux 2025

Aron van de Pol, Jelena Prokic, Angus Mol

Leiden University Cente for Digital Humanities & Department of Korean Studies

2025-06-14

March 1st 1919

Image source: Schofield¹

• March 1st 1919
• Declaration of Independence read aloud test
• Large scale protests that lasted months after the initial day.
• On March 1st copies of the declaration circulated amongst the crowds.
• These had to be produced…

1. “Image of Crowd Outside of City Hall Taken by Dr. Schofield on March 1, 1919”.

February 27th 1919

• In the evening Ch’oe Nam-sŏn 崔南善 typset the Document at the Sinmungwan 新文舘
• He then transferred it to Yi Chong-il 李鍾一 at the Posŏngsa 普成社
• That night, the Posŏngsa produced 21.000 copies¹

Figure 1: The Sinmungwan.

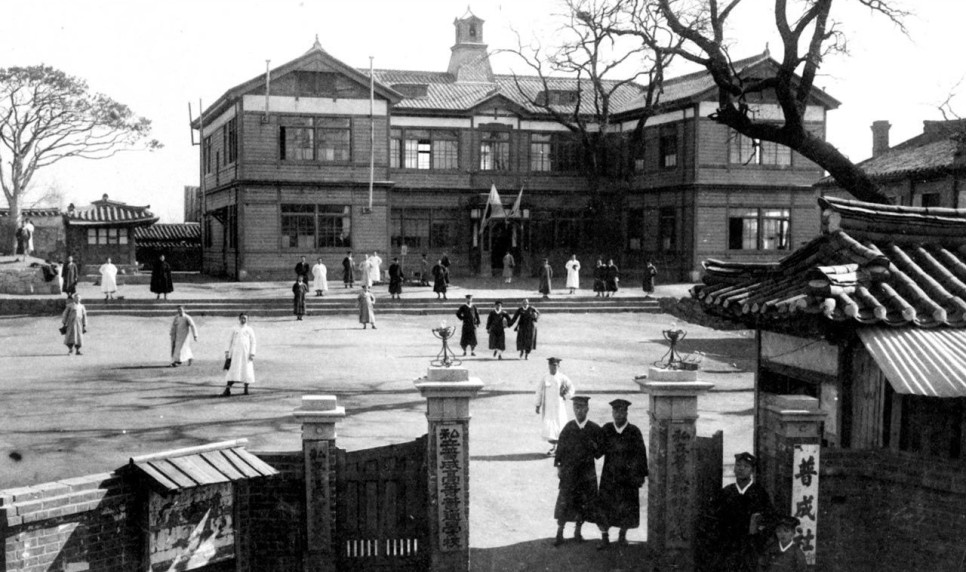

Figure 2: The Posŏngsa.²

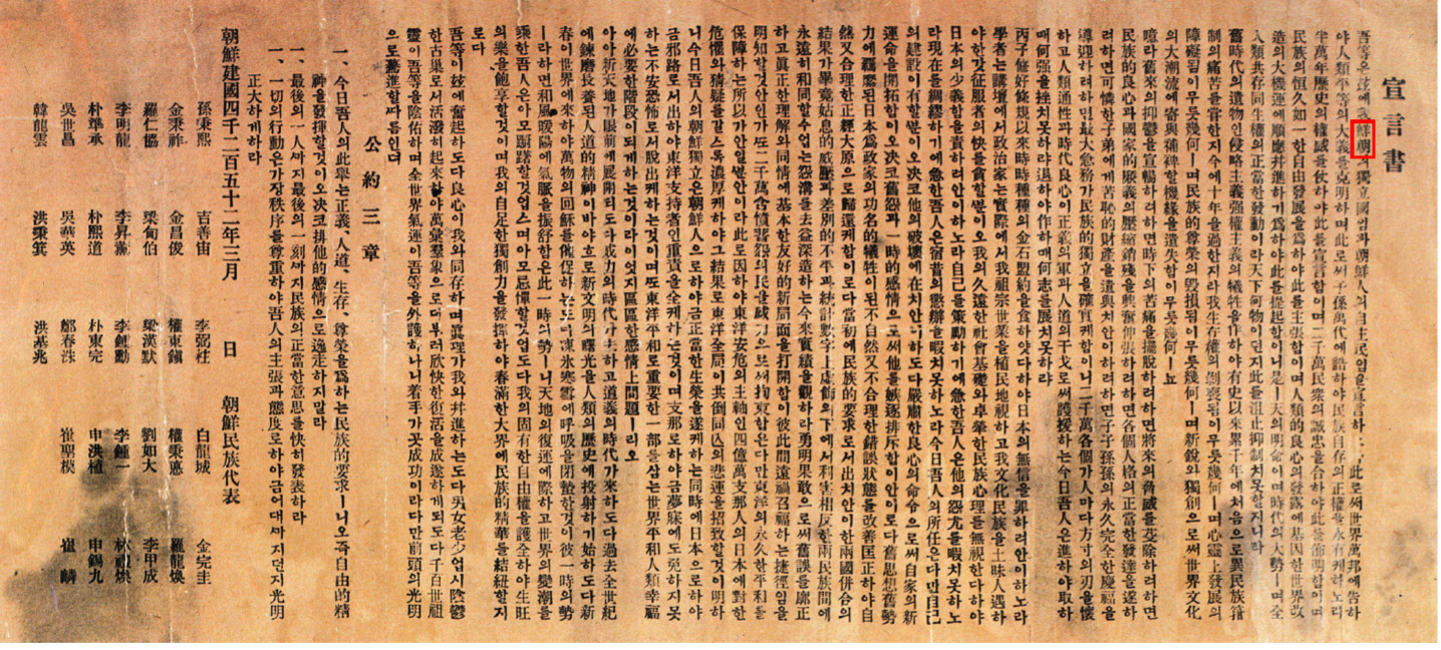

Figure 3: The Declaration of Independence. Minjok Taep’yo 33-in 民族代表 33人³

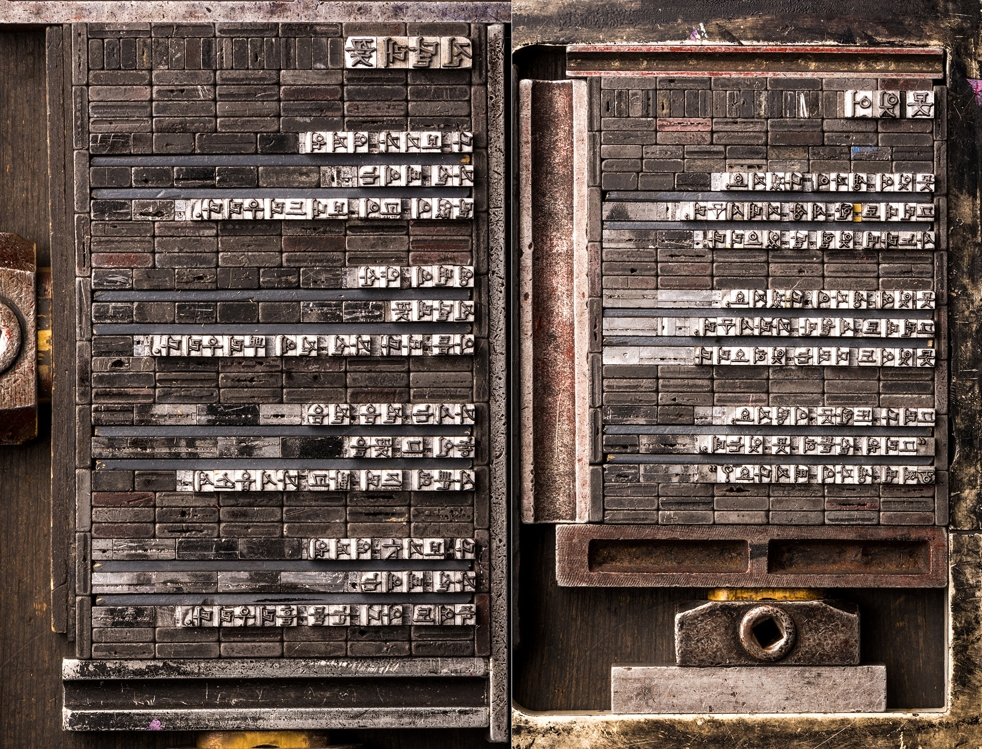

Figure 4: Example of a typeset document Chindallaekkot 진달래꽃.⁴

1. For a more detailed overview see: Shin, Korean National Identity Under Japanese Colonial Rule; Park, “3.1 Tongnip Sŏnŏnsŏ Inswae Kwajŏng kwa P’anbon ŭi Kŏmt’o 3.1독립선언서 인쇄과정과 판본의 검토 [A Review of the Printing Process and Editions of the Korean Declaration of Independence in 1919]”.

2. The building can be seen on the top right. The building in the center housed the Sinchukgyosa

3. “Declaration of Independence”.

4. 책과인쇄박물관

The 1920s

• During the 1920s, choice of 100-200 different print shops.¹
• Choice influenced outcome.
• A good example are poems from Kim So-wŏl’s Chindallaekkot 진달래꽃 collected works.

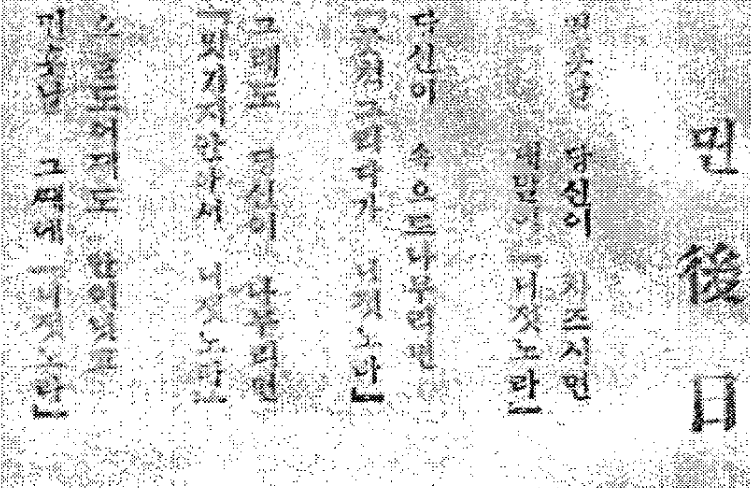

(a) Hansong Toso 漢城圖書 issue of Chindallaekkot (collected works)

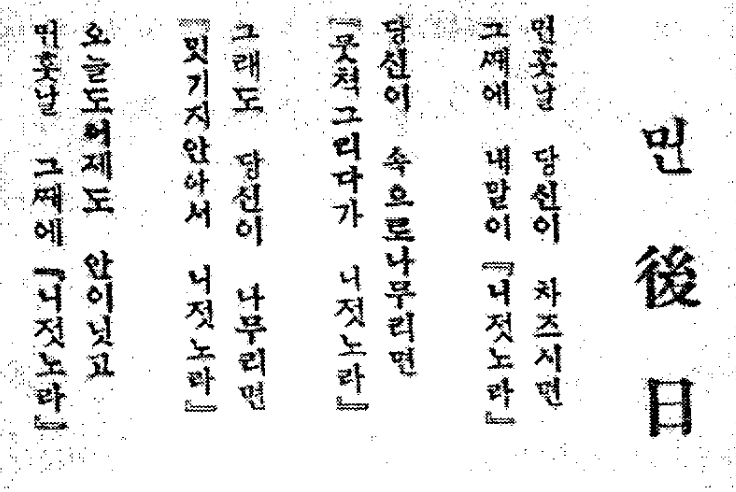

(b) Chungang Sorim 中央書林 issue of Chindallaekkot (collected works)

(c) Haksaenggye 學生界 (July 1920) issue of the poem.

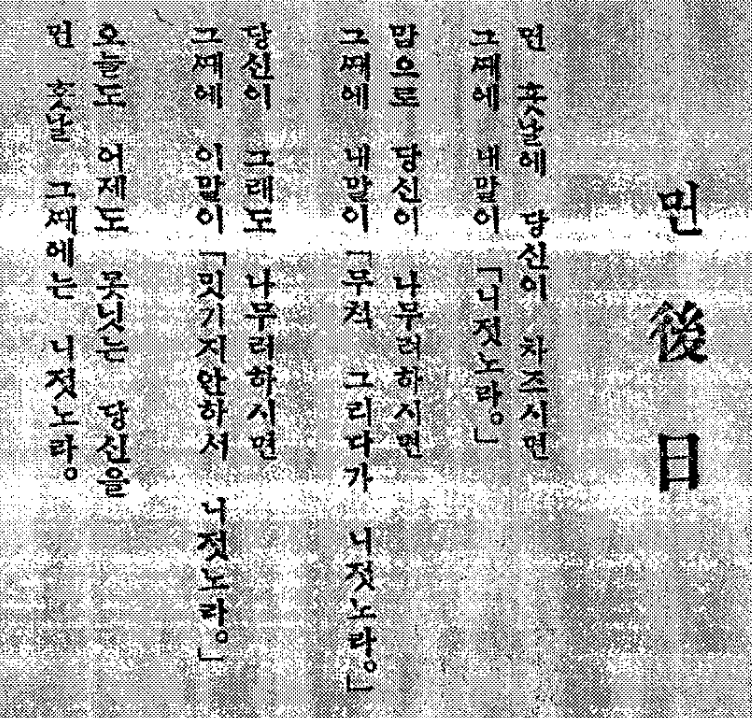

(d) Kaebyok 開闢 (August 1922) issue of the poem.

Figure 5: Some Day Long From Now 먼 후일 poem from various print runs

1. depending on the year sampled. See De Fremery, “How Poetry Mattered in 1920s Korea,” 102 for more details.

The 1920s

• During the 1920s, choice of 100-200 different print shops¹
• Choice influenced outcome
• A good example are poems from Kim So-wŏl’s Chindallaekkot 진달래꽃 collected works

(a) Hansong Toso 漢城圖書 issue of Chindallaekkot (collected works)

(b) Chungang Sorim 中央書林 issue of Chindallaekkot* (collected works)

(c) Haksaenggye 學生界 (July 1920) issue of the poem.

(d) Kaebyok 開闢 (August 1922) issue of the poem.

Figure 6: Some Day Long From Now 먼 후일 poem from various print runs.

1. depending on the year sampled. See De Fremery, 102 for more details.

Characteristics?

• Work done by De Fremery¹

(a) Hansong Toso Chusik Hoeisa printed Tang 당

(b) Taedong Inswaeso printed Tang 당

(c) Hansong Toso Chusik Hoeisa printed Tang 당

(d) Taedong Inswaeso printed Tang 당

Figure 7: Examples of subtle typographic differences. Notice the angle of the stroke on Tigŭt ㄷ and the differences in the Chiŭt ㅈ

1. De Fremery, 131, p.595.

Research

Can neural networks be used to classify historical printshops and identify the specific visual features that distinguish their typographic styles?

Interpretability

• All studies aim to detect, but how a model detects is often neglected
  • For CNNs and Vision Transformers, several interpretability methods have proven successful
  1. GradCAM and derivates¹
  2. SHAP (SHapley Additive exPlanations)²

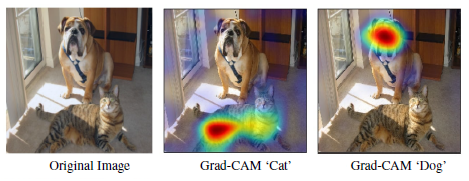

(a) Example of GradCAM

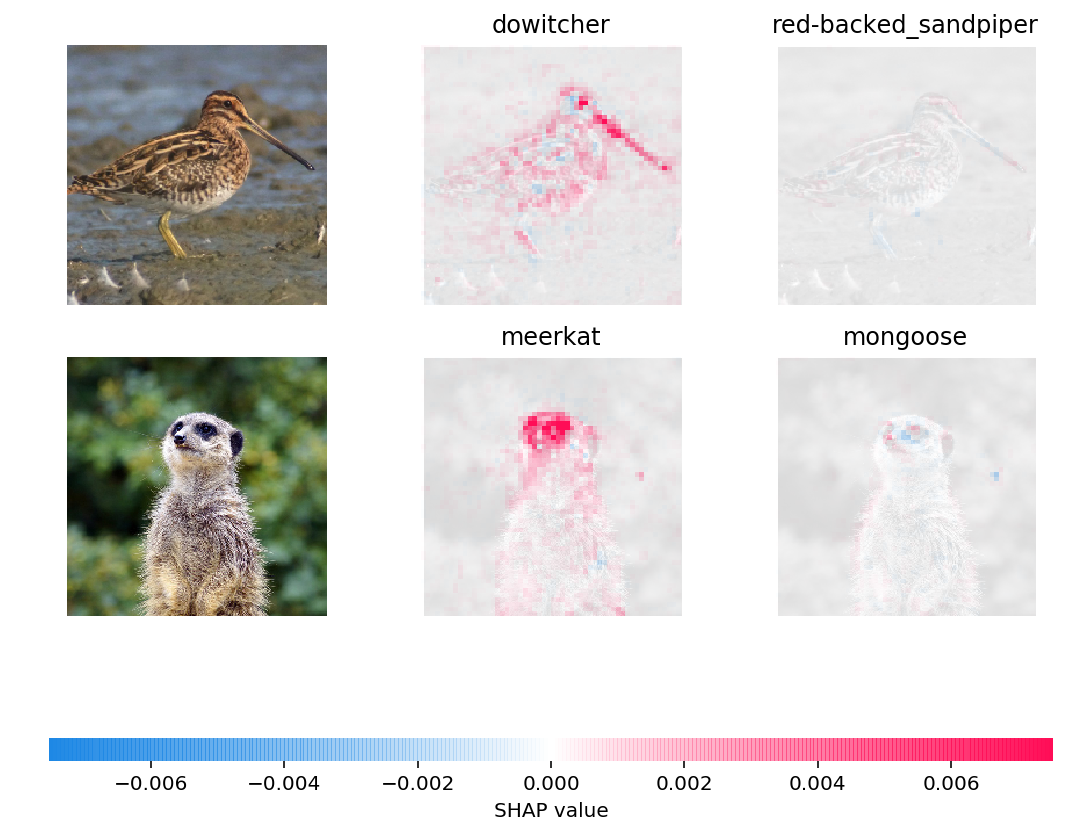

(b) Example of SHAP

Figure 8: Interpretability methods visualized

1. Selvaraju et al., “Grad-CAM”.

2. Lundberg and Lee, “A Unified Approach to Interpreting Model Predictions”.

Dataset

• We scraped the Hyundam Mun’go for magazines & paperbacks dating between 1900-1950.¹
• 177.101 Images of Pages.
• 14.597 Publications.
• Contributions of 202 unique print shops.
• 2552 Publishers.
• 787 Distribution outlets.

Note: These are uniquely named entities. The Publishers/Distribution Outlets need more cleaning for a definitive answer.

1. Hyundam Mun’go Foundation, “Hyundam Mun’go Collection”.

Dataset

Printshop	Printshop (KR)	Pages	Percentage
Taedong Inswaeso	大東印刷所	27,882	42.07%
Hansŏng Toso Chusik Hoeisa	漢城圖書 株式會社	19,244	29.04%
Sinmungwan	新文館	13,050	19.69%
Chosŏn Inswae Chusik Hoeisa	朝鮮印刷株式會社	6,101	9.20%
Total		66,277	100%

• Class Imbalance: This distribution reflects real-world production volumes.
• We Chose not to implement class rebalancing techniques.

Dataset

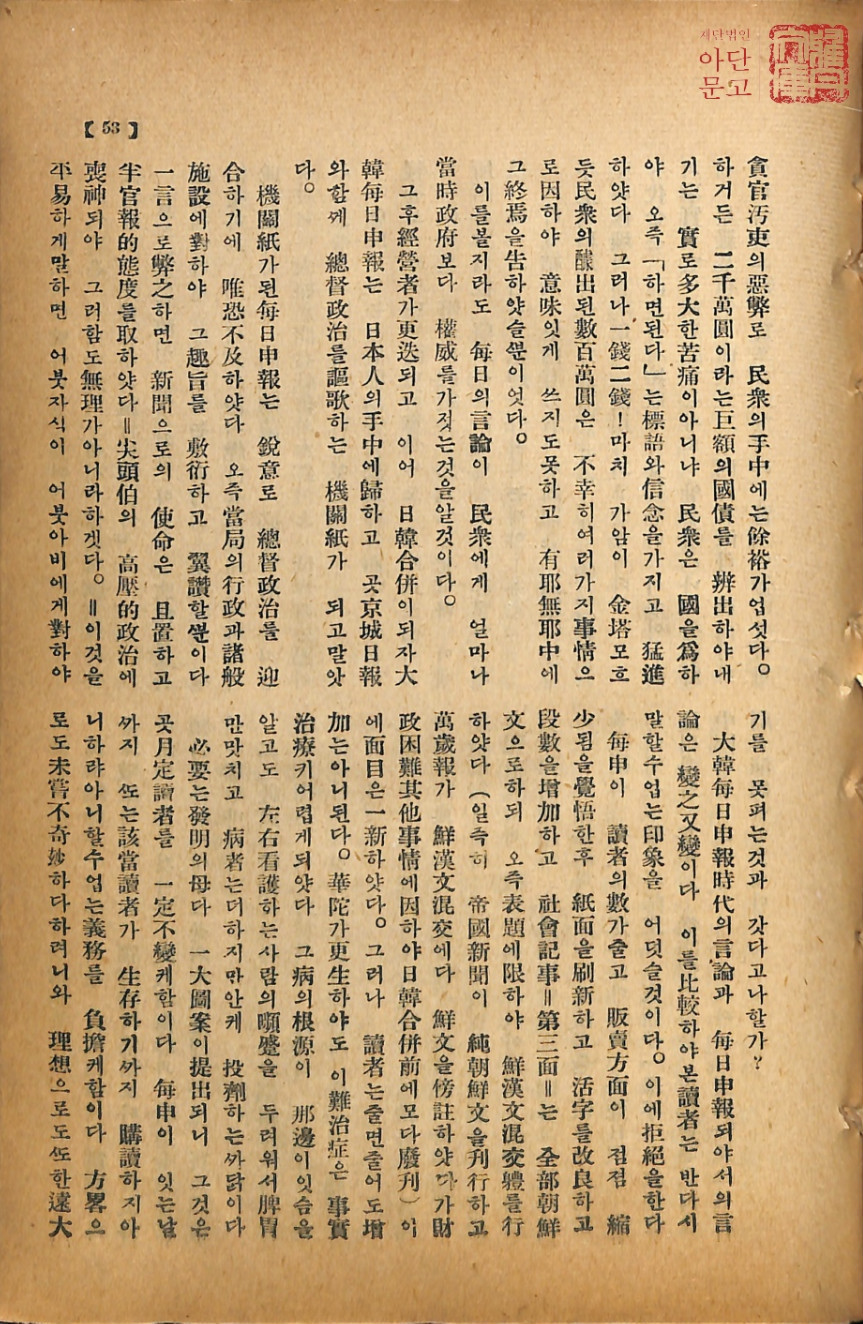

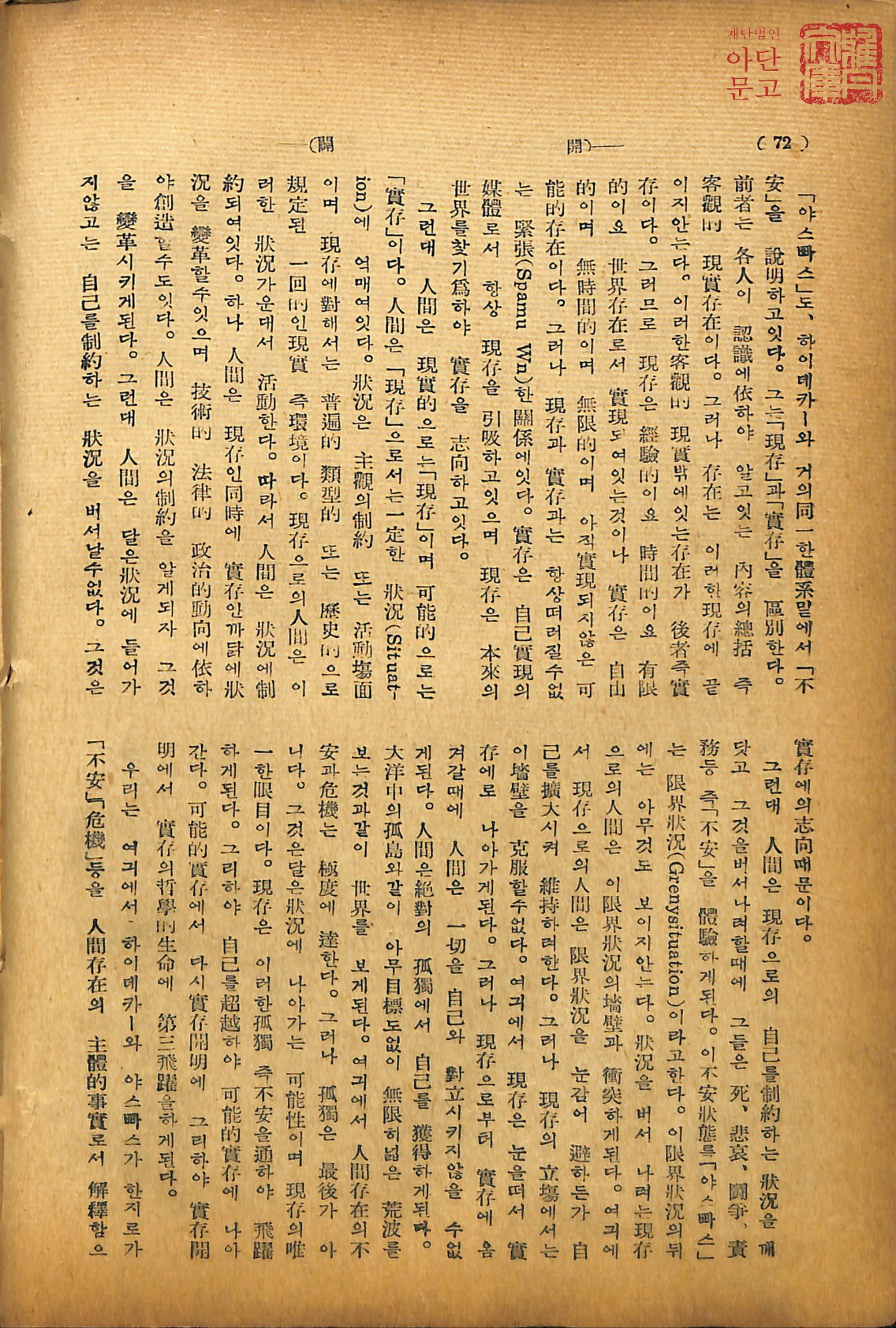

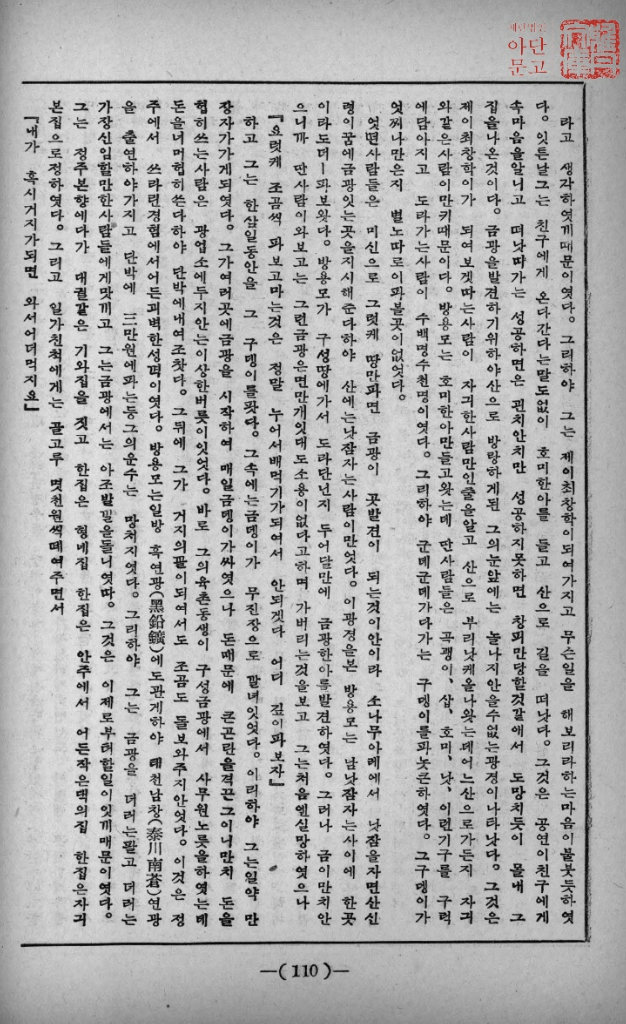

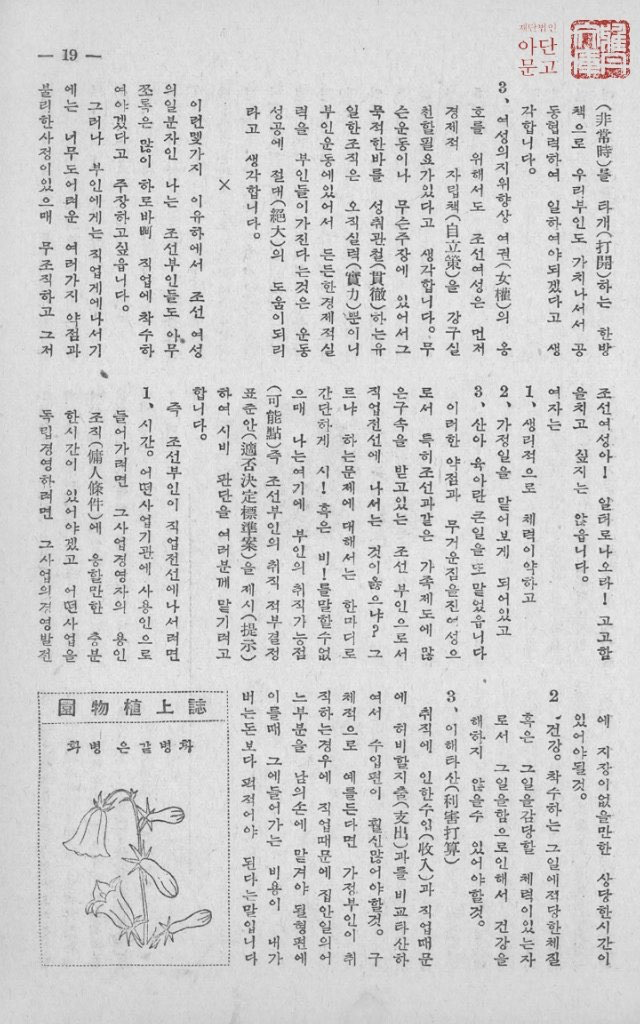

Examples of pages in the dataset.

Approach 1

CNN/ViT¹+ GradCAM

1. Basing of approaches for font detection. For more see: Seuret et al., “Dataset of Pages from Early Printed Books with Multiple Font Groups”; Christlein et al., “Proof of Concept”; Yang et al., “HanFont”.

Results Approach 1

ConvNext Base architecture - 98% Accuracy (F1=0.98)

Can neural networks be used to classify historical printshops and identify the specific visual features that distinguish their typographic styles?

• Tested various models (Resnet18/152, ConvNext Base, Swin S3 Base)

• 30 Epochs

• Focus on ‘margins’

• Finding in itself

• Curious to more

Approach 2

Following idea of Seuret et al.¹ a page is cut into 4 random cutouts, while reducing overlap to max 30%

1. “Dataset of Pages from Early Printed Books with Multiple Font Groups”.

Approach 2 Results

99.8% Accuracy (F1=0.99) Swin S3 Base-224

Can neural networks be used to classify historical printshops and identify the specific visual features that distinguish their typographic styles?

• Tested various models (Resnet18/152, ConvNext Base, Swin S3 Base)

• 30 Epochs

• Focus on ‘near random’

• Likely overfit?

• Significant augmentation or lower epoch did not result more interpretable features.

Interpretability as a Problem

• High classification accuracy is not enough
• As humanists, we are also interested in the why

If we can predict well which but can’t explain how, what does it tell me about the history?

MIL

• Multi Instance Learning.¹
• Used in the field of medical imagery.²
• Similar issues faced by humanists:
  • Retrieve model’s decision making
  • Interpretably decision making
• We follow the AttriMIL implementation of Cai et al.³

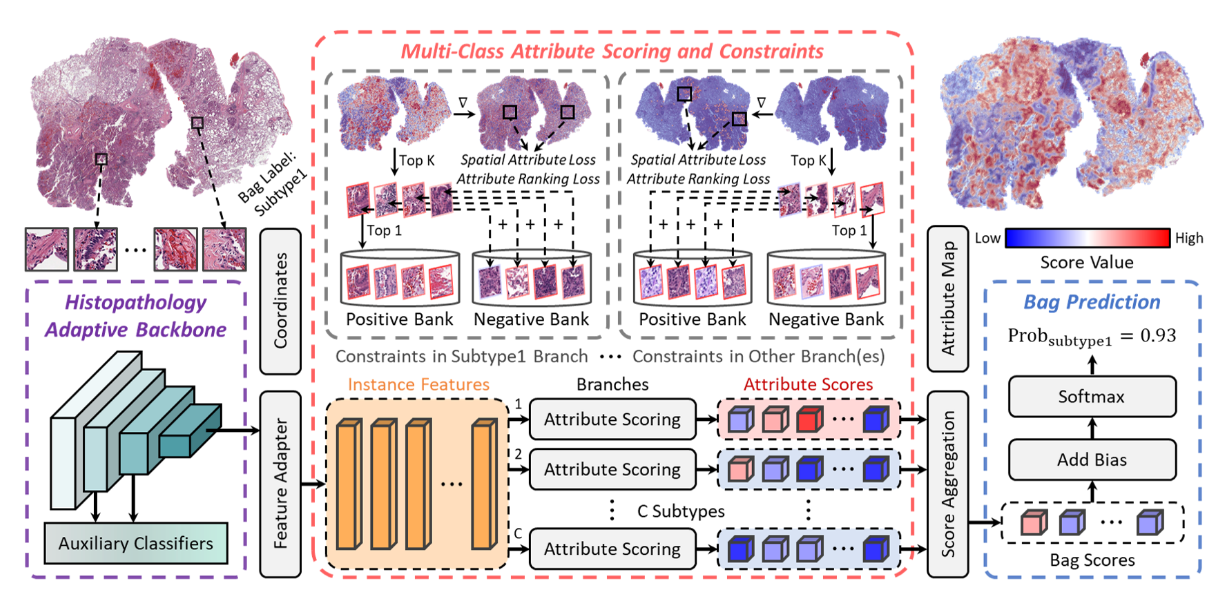

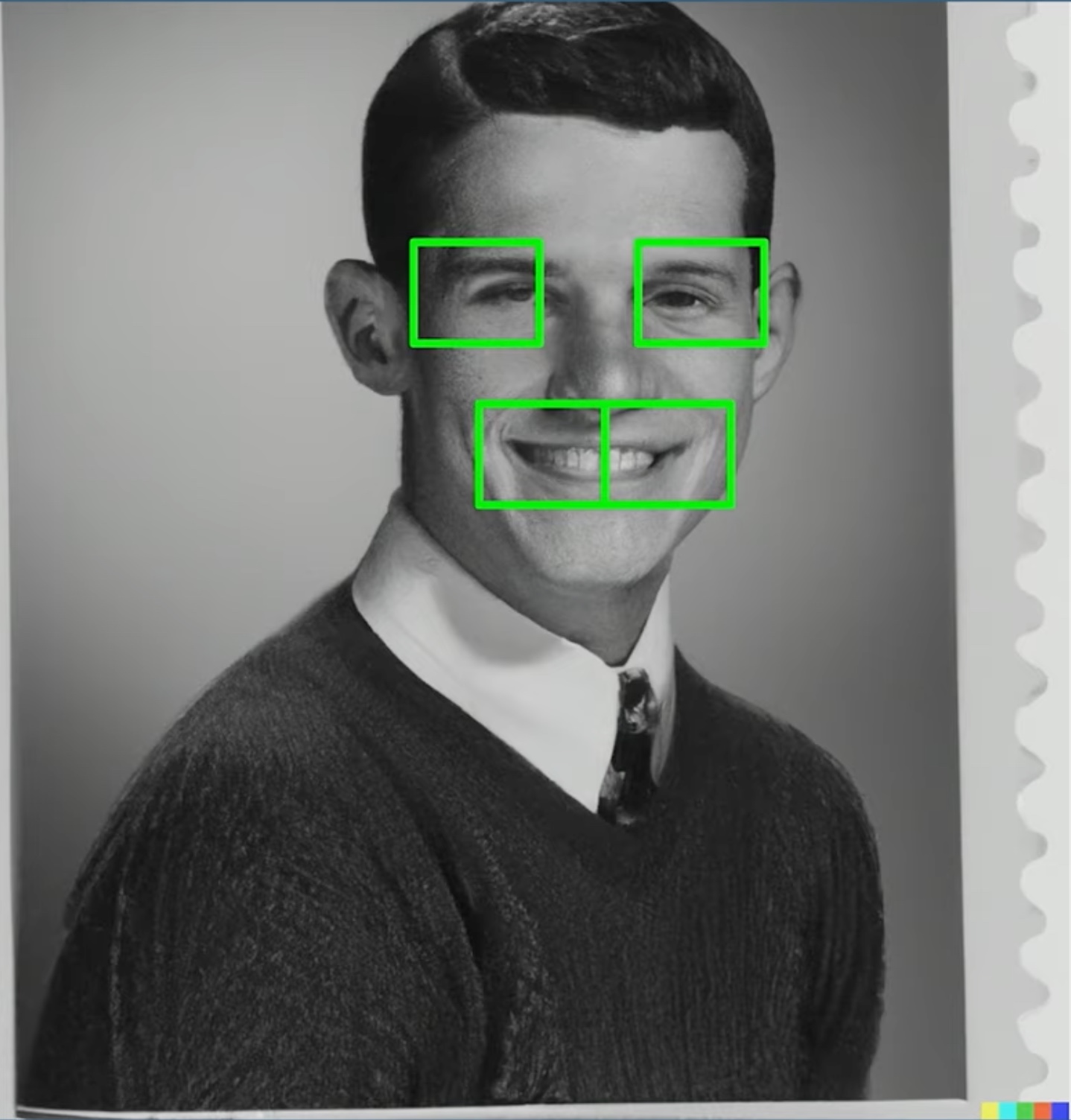

Figure 9: MIL visualization.⁴

1. Maron and Lozano-Pérez, “A Framework for Multiple-Instance Learning”.

2. Papadopoulos, Topouzis, and Delopoulos, “An Interpretable Multiple-Instance Approach for the Detection of Referable Diabetic Retinopathy from Fundus Images”; Javed et al., “Additive MIL”; Yang et al., “HAMIL”; Deng et al., “Cross-Scale Multi-Instance Learning for Pathological Image Diagnosis”; Waqas et al., “Exploring Multiple Instance Learning (MIL)”; Gadermayr and Tschuchnig, “Multiple Instance Learning for Digital Pathology”.

3. “Rethinking Attention-Based Multiple Instance Learning for Whole-Slide Pathological Image Classification”.

4. Cai et al.

MIL Concept

MIL:

1. Image > Bag of Instances
2. Instance > Feature Extractor (Resnet, or Vision Transformer)
3. Features > Attention based aggregator
4. Aggregator output > Classifier

Can extract attention per patch

ViT:

1. Input > Patches
2. Patches > Linear Embedding (adding [CLS] Token Embedding)
3. Positional Encodings added
4. Through Transformer encoders
5. Classificiation head

ViT’s attention: Learn internal representations by understanding relationships between all parts of a single image. It’s for feature aggregation within one image.

MIL’s attention: Solve the weak supervision problem by explicitly weighting the contribution of distinct instances (which are individual patches) to infer a bag-level label, knowing that only a few instances might be responsible for a positive bag label.

Source: James Leech – NIDC22

Applied

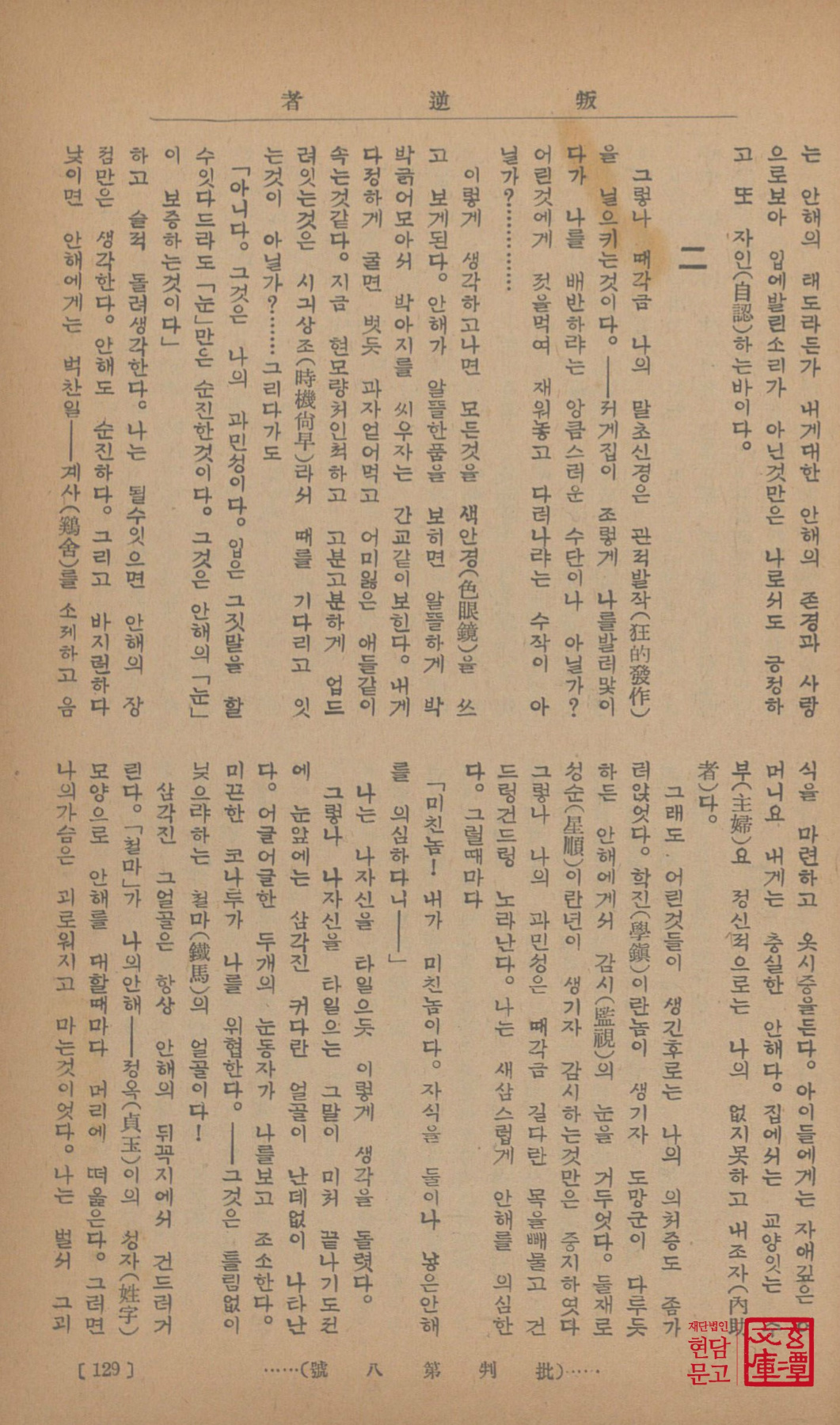

(a) Original

(b) Patched

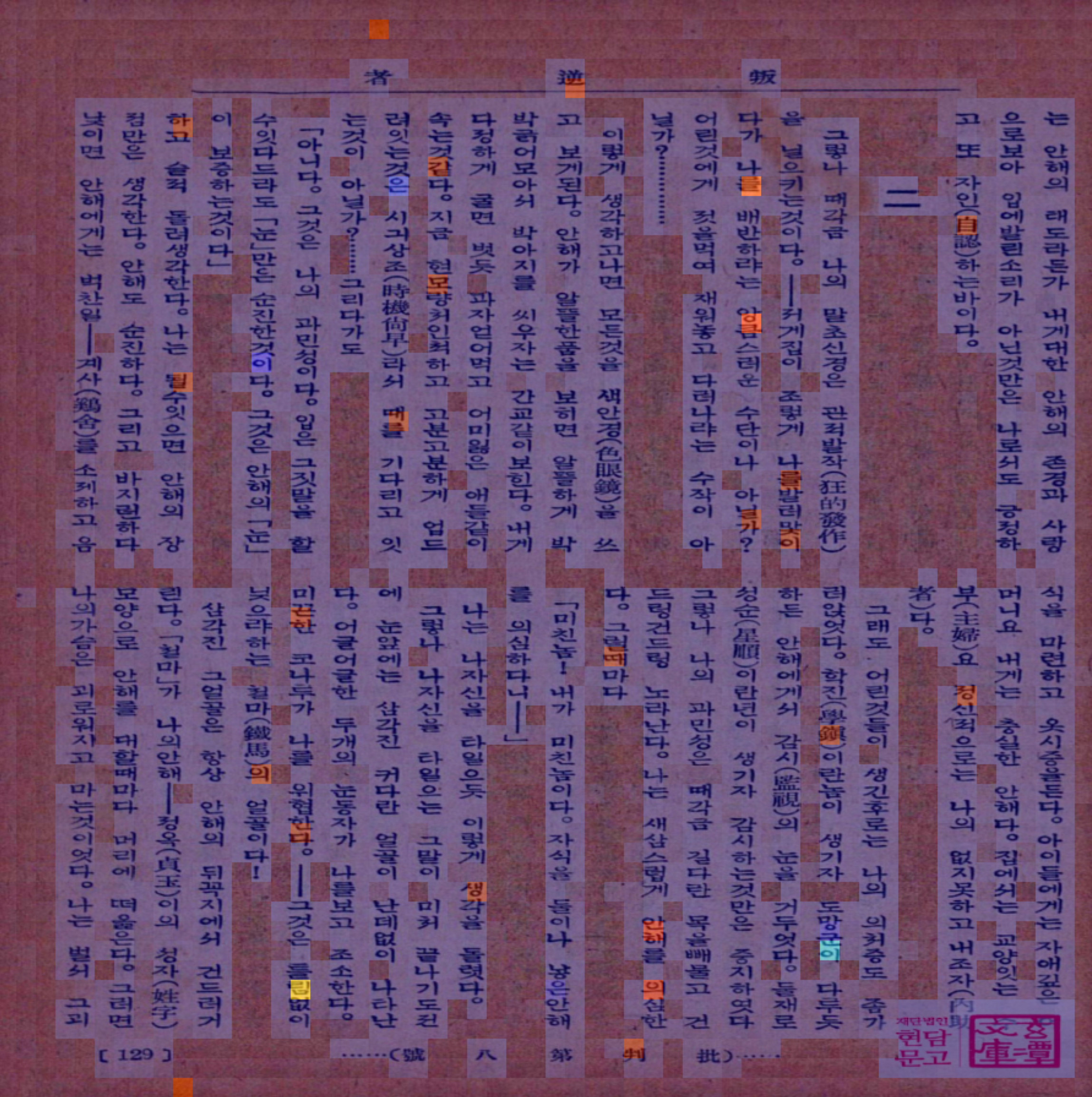

(c) Attention displayed

Figure 10: Applied MIL

Embeddings Space

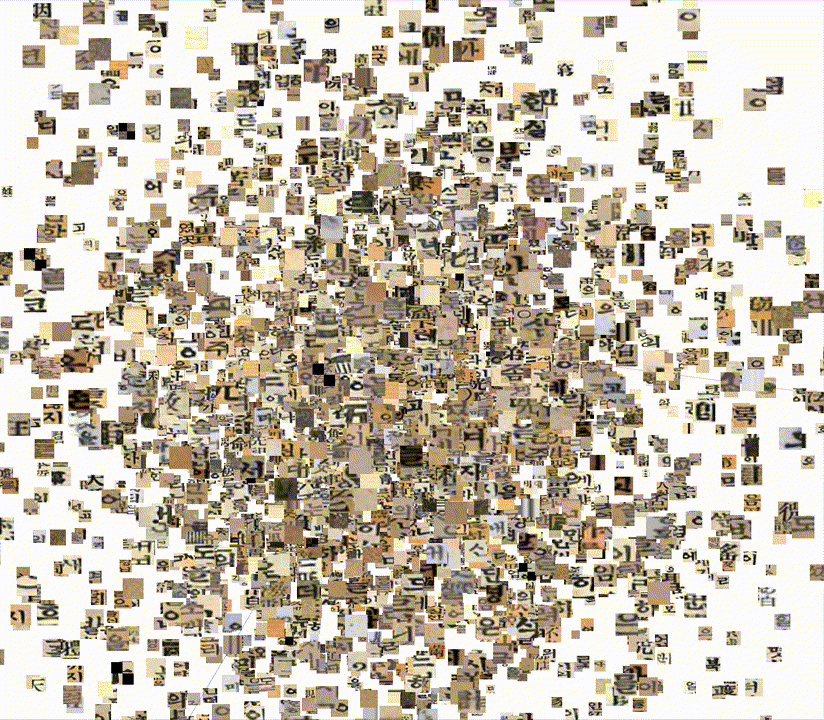

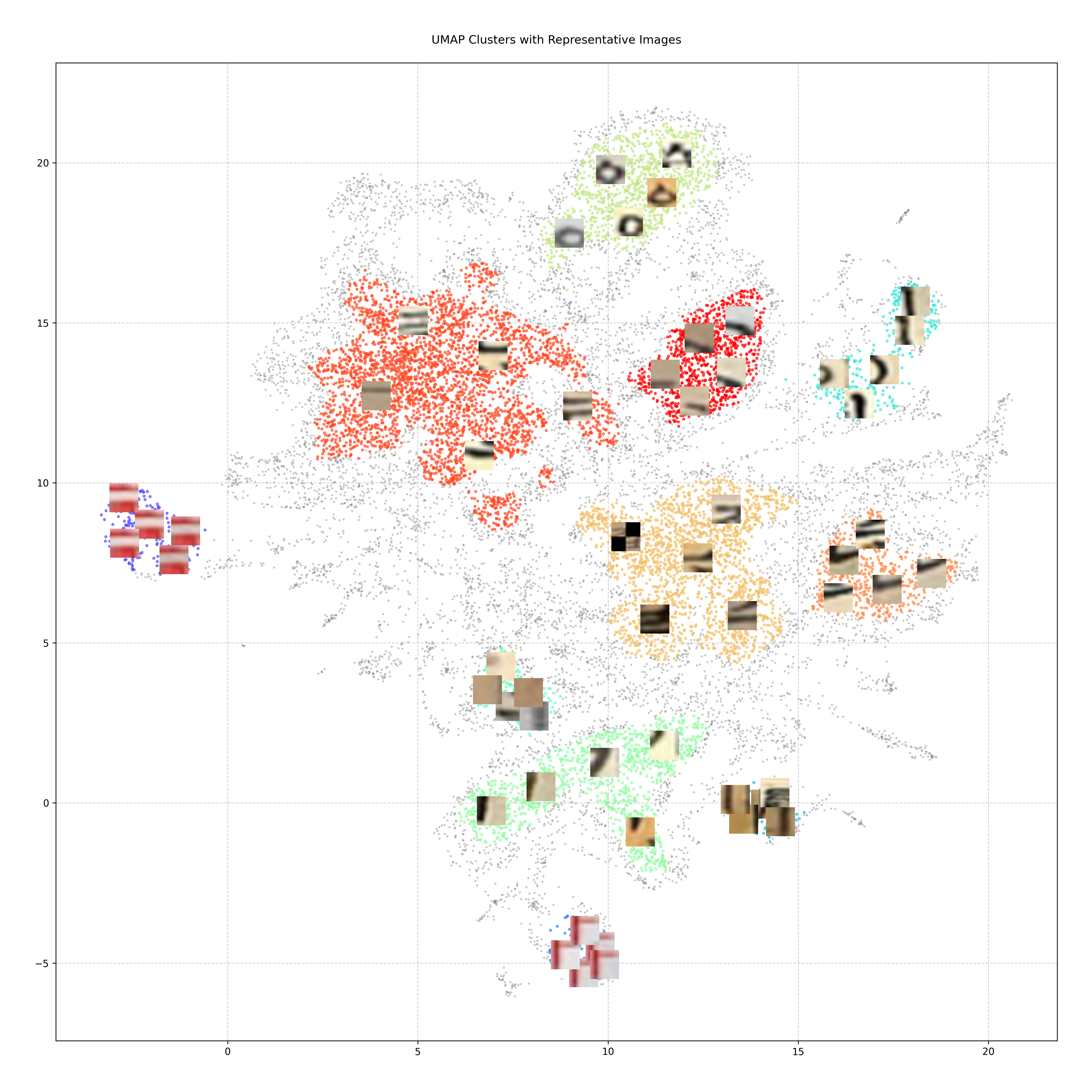

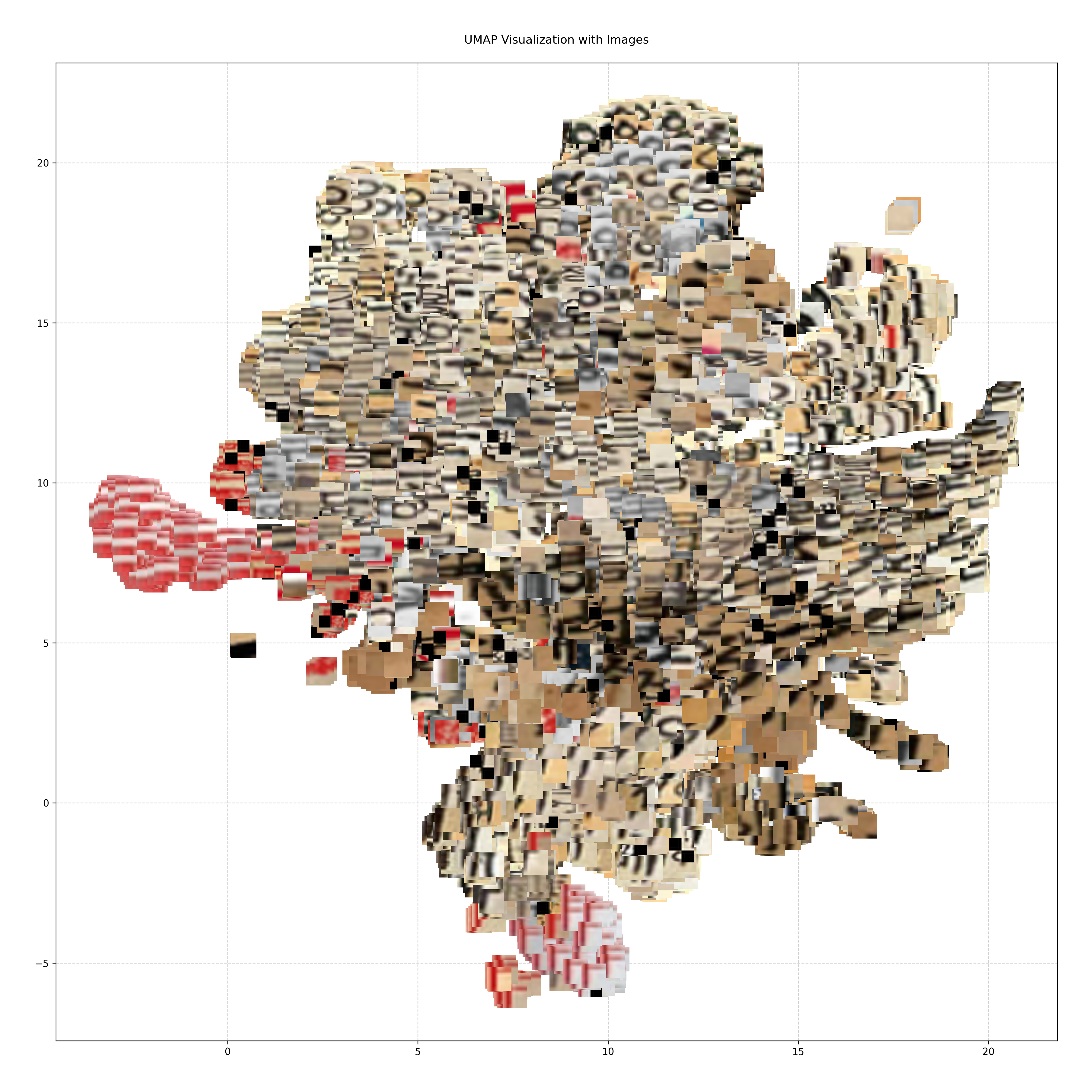

Figure 11: UMAP Visualisation of MIL Embeddings

Embeddings Space

Figure 12: UMAP Visualisation of MIL Embeddings

Sampling clusters

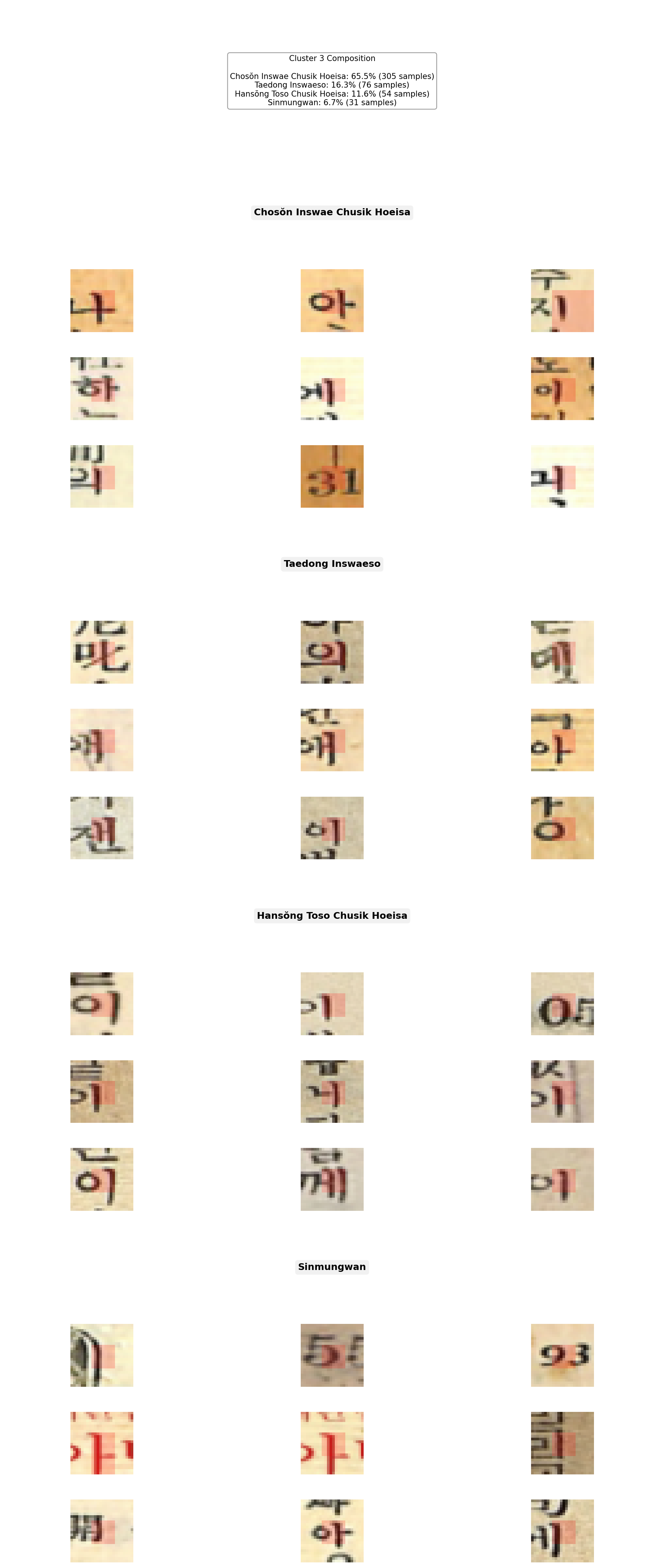

(a) Cluster3

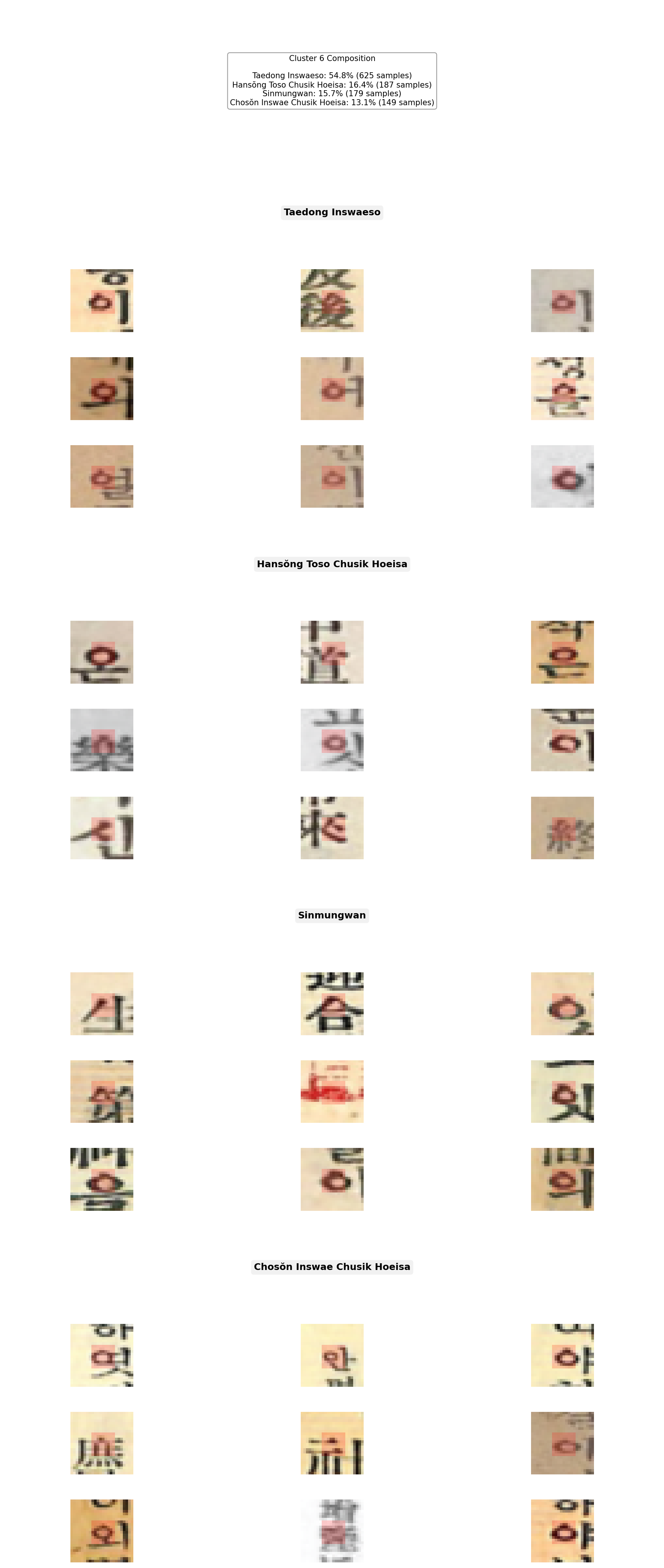

(b) Cluster 6

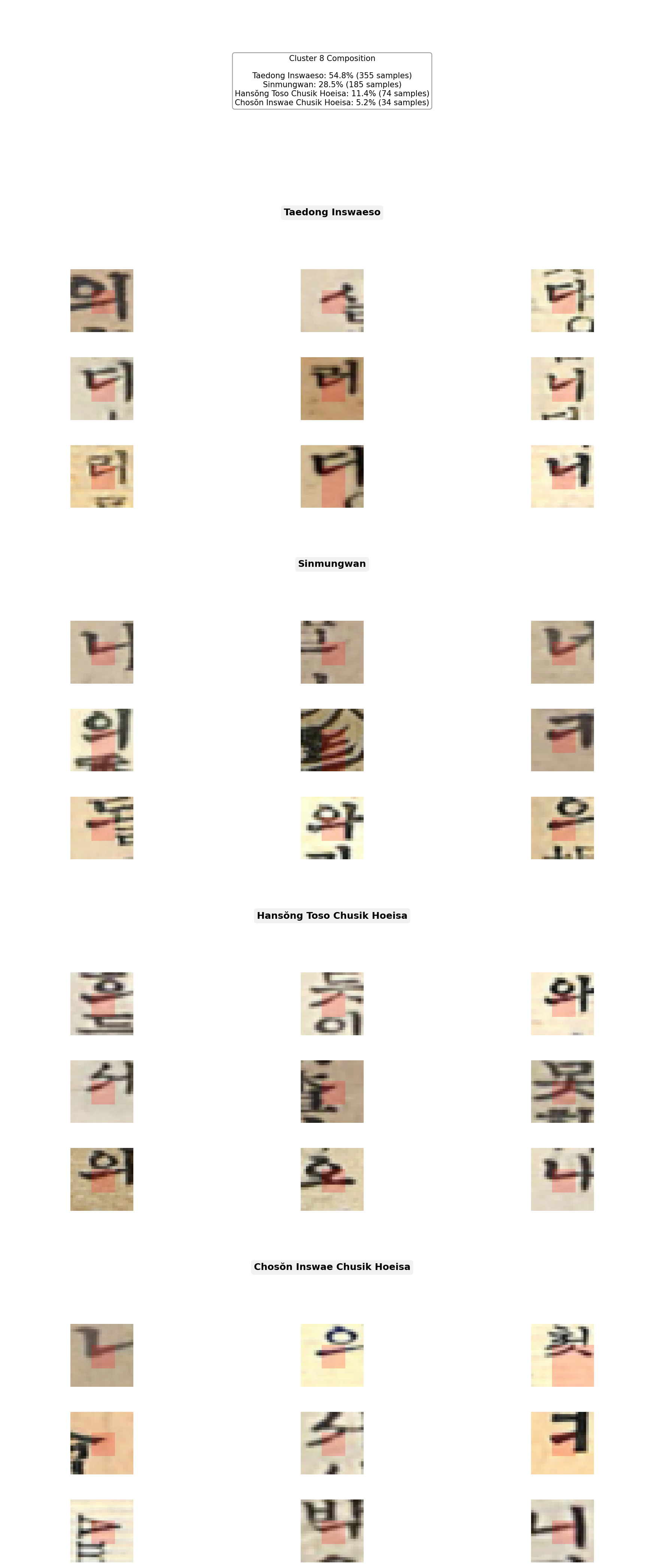

(c) Cluster 8

Figure 13

Compared

(a) Chosŏn Inswae Chusik Hoeisa

(b) Hansong Toso Chusik Hoeisa

(c) Taedong Inswaeso

(d) Sinmungwan

Figure 14: Sharp Stroke of ㄷ Tigŭt as feature for Taedong Inswaeso / Sinmungwan. Also prevalent in ㄴ Nieun and ㄹ Lieul

Features over Time

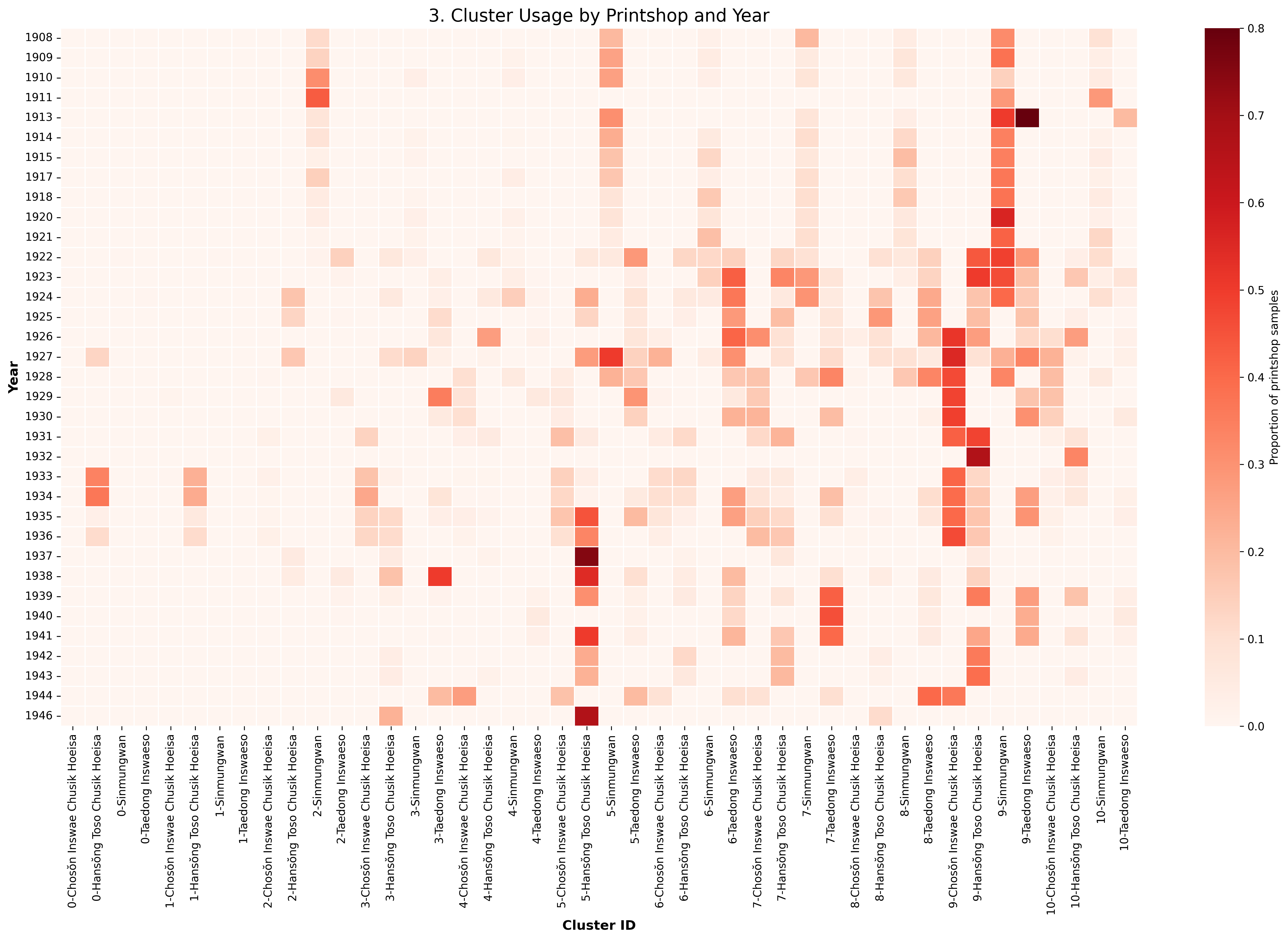

Figure 15: Heatmap of clusters division over time.

Shifts in Features

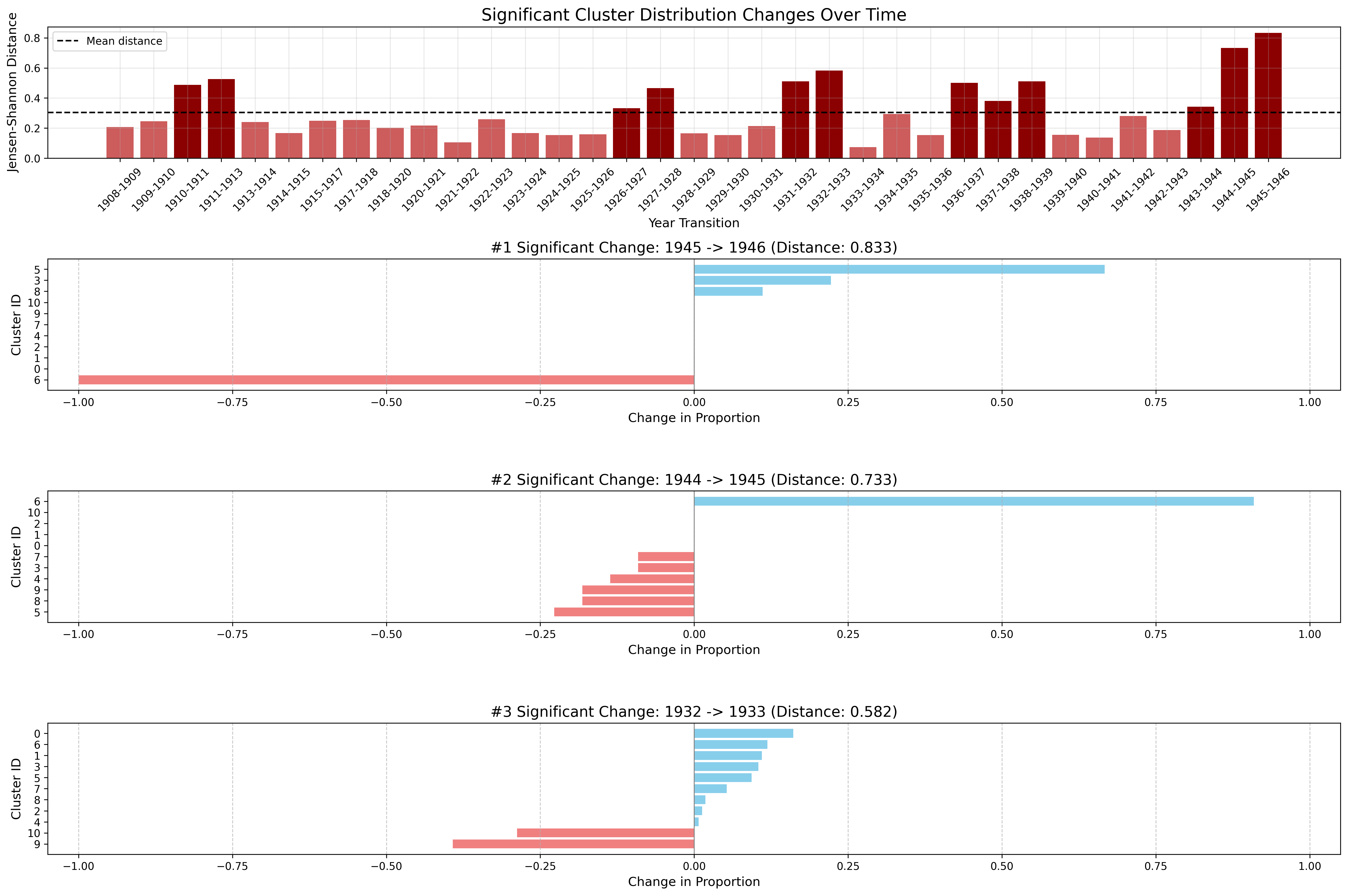

Figure 16: Cluster Shifts

Further

• Bags of Patches as feature, not singular patch
• Improvements on Clustering
• Move to typology of printshop
